Using GZIP between your backend and frontend services

5 minute read

javascript, csharp, datacompression, gzip

Table of contents
  1. A sample project showing GZIP in action
    1. Flow details
    2. Limitations
  2. Conclusion

Have you ever faced a constraint of data limitation between your client and server applications? For example, recently, I've got an error of a URI size limit of 8892 bytes, which allows something close to 9000 characters on the URI path. Unfortunately, my team couldn't change the origin to respect the constraint because of how the ecosystem works. A change like this would demand considerable effort, increasing the time to deliver the solution. Fortunately, we found a quick solution by using GZIP!

A sample project showing GZIP in action

We had to compress the data on the backend and send it to the frontend, where it would decompress it. So, after a bit of research, these are the steps we followed to implement it in the project:

  • C# backend:

    • Use the namespace System.IO.Compression that provides a native solution (without external libraries) to handle GZIP requirements.
    • Convert the gzipped content to base64 to ensure the data remains intact without modifications during transport. In our case, through the HTTP header.
  • JavaScript frontend:

    • Use the Pako library to inflate the data received from the backend. The Compression Streams API is a native API available on browsers but not very well supported.

To see it in action, download this project and execute the following command:

▶ docker-compose up app
Starting gzip-between-backend-frontend-sample_app_1 ... done
Attaching to gzip-between-backend-frontend-sample_app_1
app_1        | ### Running and watching the project 👀
app_1        | dotnet watch ⌚ Polling file watcher is enabled
app_1        | dotnet watch 🚀 Started
app_1        | Building...
app_1        | warn: Microsoft.AspNetCore.DataProtection.Repositories.FileSystemXmlRepository[60]
app_1        |       Storing keys in a directory '/root/.aspnet/DataProtection-Keys' that may not be persisted outside of the container. Protected data will be unavailable when container is destroyed.
app_1        | info: Microsoft.Hosting.Lifetime[14]
app_1        |       Now listening on:
app_1        | dotnet watch 🌐 Unable to launch the browser. Navigate to
app_1        | info: Microsoft.Hosting.Lifetime[0]
app_1        |       Application started. Press Ctrl+C to shut down.
app_1        | info: Microsoft.Hosting.Lifetime[0]
app_1        |       Hosting environment: Development
app_1        | info: Microsoft.Hosting.Lifetime[0]
app_1        |       Content root path: /app/src/

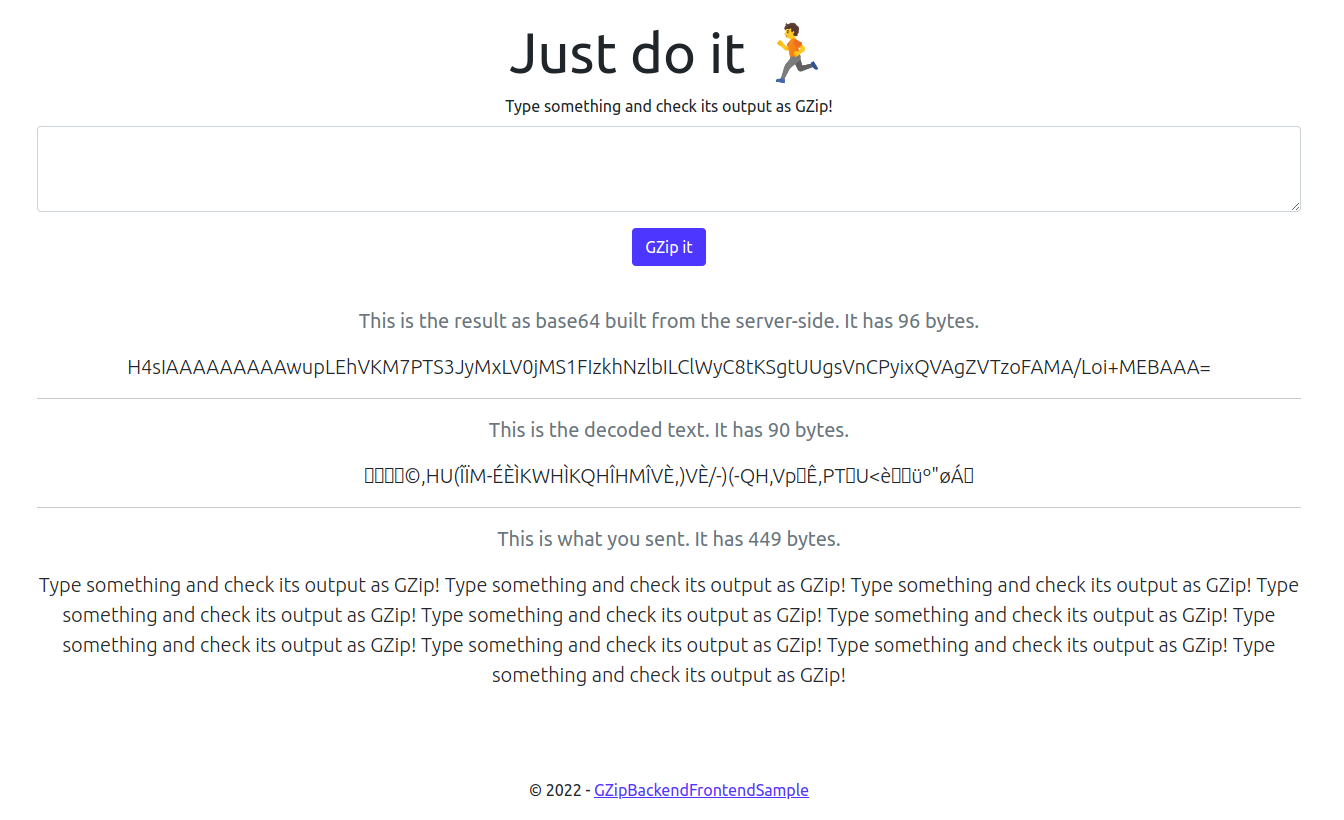

If you access http://localhost:5128/ and submit the text Type something and check its output as GZip! but written ten times, you'll get the following:

You'll see three text boxes. The first one shows the compressed text as base64. The second shows the compressed text. The third and last one shows the raw text you typed at the beginning of the flow.

Notice the compressed data has 90 bytes while the original has 449 bytes. So the algorithm reduced the original data by almost 80% 😲.

Flow details

If you are in doubt about where you go in the code when you test the project, look at the bullets:

  • When you access http://localhost:5128/, the HomeController handles it through the Index method.
  • Including other cshtml files, the Index.cshtml is SSR (server-side rendering), and an HTML is sent to the browser.
  • When you submit a text, the form sends the GET request to the method RetrieveGZippedContent in the HomeController.
  • The method RetrieveGZippedContent gets the text, compresses it, and then sends it as a query string using a redirect (302) to the Index. Check out its test!
  • When the JavaScript on the browser notices the query string, it gets the compressed text as base 64 and retrieves its original value through the method retrieveInflatedFromDeflateAsBase64.
  • Ultimately, the script configures the fields and displays the hidden HTML.


You'll get the error 414 (URI too long) if you put a huge input. To avoid that, you can change the project by sending the text through the body.


Although we could solve the issue, this is absolutely a technical debt. Sometimes a technical debt is acceptable as long as there is a path toward something that fixes not only it but many other aspects of the project or the ecosystem. The thing is: Is this a technical debt that we tell we'll fix in the future, but it never happens, or is it one that indeed will be fixed? I hope for the latter 🙏.

See everything we did here on GitHub.
