SSO with Cognito through the Authorization Code grant type

10 minute read

oauth, oidc, cognito, ciam, functional testing

Table of contents
  1. One possible way to unify accounts
  2. Deploying Cognito as our Authorization Server through Terraform
  3. Emulating products A and B
    1. An important thing about the functional testing project
  4. Authorization Code Grant Type on product A
  5. SSO on product B
  6. Conclusion

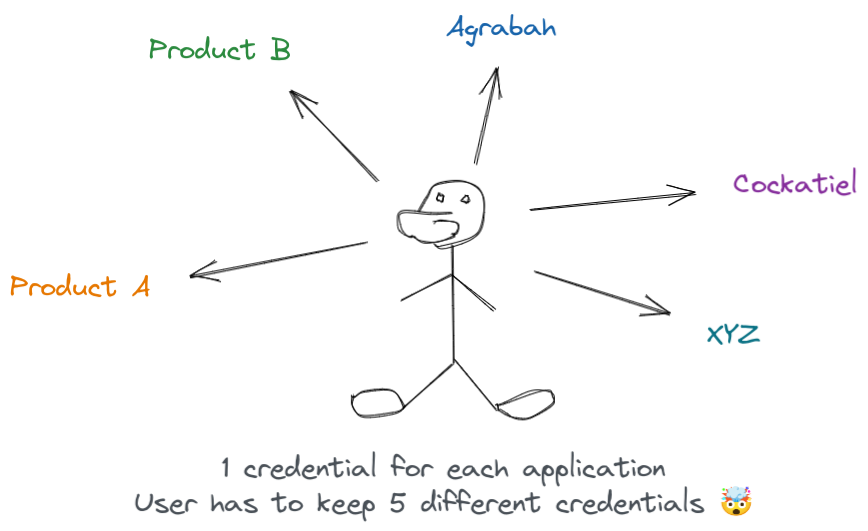

Currently, I'm working for a company with a very particular problem that showed up after it created many products in different domains. It even bought some companies, making the problem worse: a user who has an account on "product A" can't use the same account on "product B". The following image illustrates this situation:

If an organization has 5 products without unified login, the user has to keep 5 credentials to log in to each one, even though he is in the same ecosystem.

Nowadays, each product has a specific way to authenticate and authorize a person. Now the company I'm working for wants to unify all the accounts to use only one universal login instead of many. How to achieve this 🤔?

One possible way to unify accounts

To simplify the solution, I'd like to present you the following assumptions:

  1. Each product has its own method of authenticating the user
  2. Each product has its way of authorizing the user.
  3. Each product has a single database line that represents the user on its entire ecosystem.
  4. To reference the user in other systems, it uses a UUID. Imagine that it could use a government ID or an email 🤯; fortunately, in our example it doesn't 🥳.
  5. Basically, each authentication flow uses an email and password as the credential.

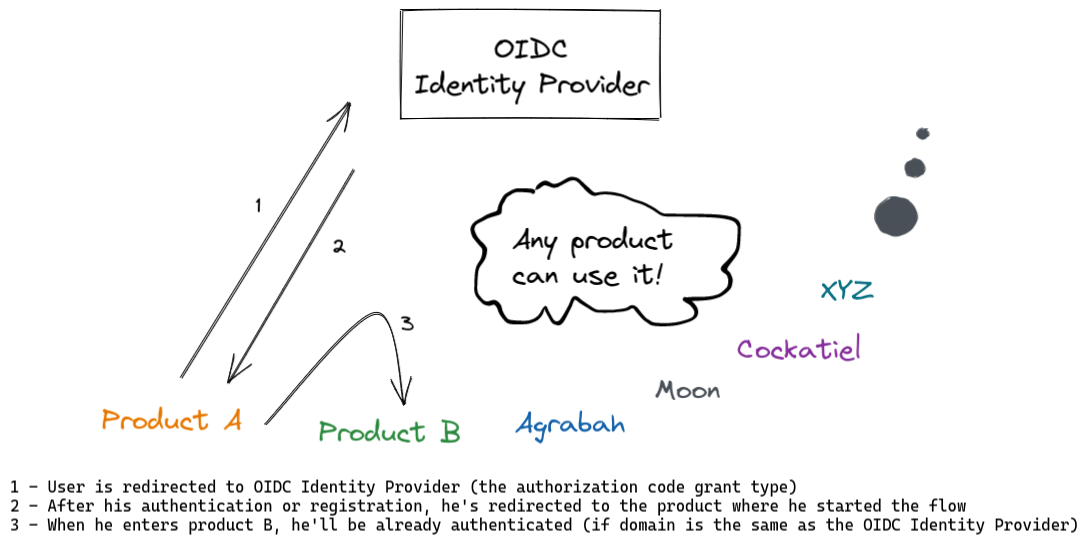

Now that the scenario is more manageable, here's the proposed solution:

When the user wants to log in on Product A, it goes to another domain, then when he authenticates or registers in there, he's redirected to where he was (Product A). However, if he goes to Product B, he's automatically authenticated, then experiencing an SSO (single sign-on).

Compiling the main points:

  • One single place for SSO. The user will experience a single flow for login and signup. Same UX, same rules, less confusion.
  • Given that the user is authenticated, if he goes from product A to B, he does not need to log in again (it depends). Using a single domain to serve as the Identity Provider, the feature SSO (single sign-on) is possible as the session will be kept in one single place. For example, suppose products A and B are in the same domain as the Authorization Server. In that case, the user will be automatically authenticated on "product B" as it will know the user through a cookie created by the Authorization Server. On the other hand, if "product B" is in another domain, the user will have to press a button on it to go to the Identity Provider in order to authenticate again.
  • The Authorization Server will not ask for user consent for first-party applications. First-party applications are controlled by the same organization or person who owns the Authorization Server. Third-party applications enable external parties or partners to securely access protected resources given user consent. Usually, all applications you create that use some grant type (like Authorization Code) will be first-party. Though you can generate third-party ones for your partners to consume APIs from you.
  • Each product has to bind the unique ID associated with the user to its own way of authorizing him. As I described above, each product has a database line to identify the user. The product will be responsible for creating a new line for the user in its domain for new accounts. For example, given an existing user who used the new universal login method, the application can check if the user has precisely the same email in its database. If that is true, the application can bind the existing line with the user ID provided by the Identity Provider.

To illustrate the proposed solution in some parts, we'll go with Cognito! By the way, keep in mind that Cognito has many limitations, and I'm just using it for the sake of this blog post.

Deploying Cognito as our Authorization Server through Terraform

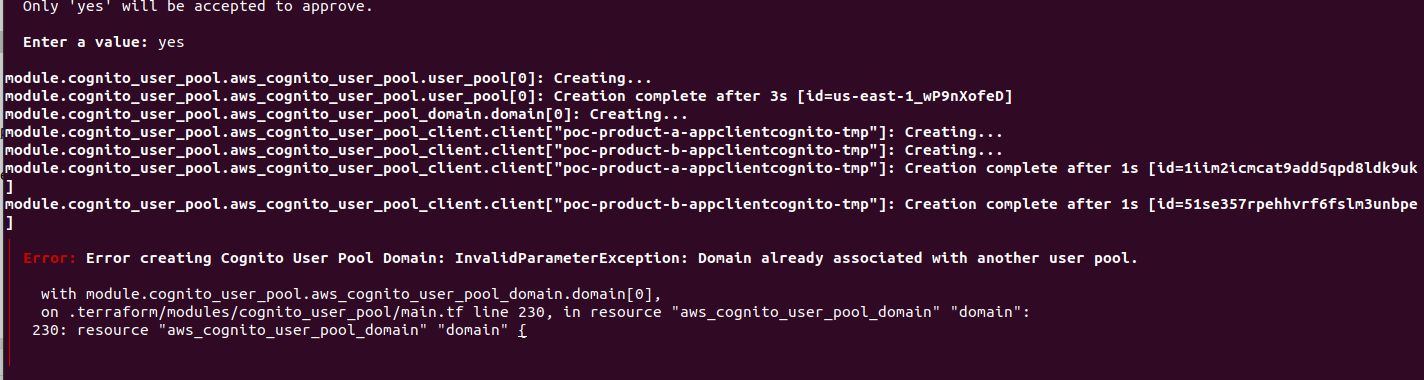

To serve the first bullet of the main points of our proposed solution, we will use the Cognito Hosted UI as our Authorization Server. Download the tutorial repository and access the folder related to this blog post. Now go to cognito_iac and then type terraform apply. Confirm and then wait until it's finished. You may see an error in case the domain has been already used by someone else (see the error below), in this case just change to another name and try again until it works.

Cognito works like S3: The domain you configure for it must be unique in the entire cloud. If you use someone that has already been used, you as asked to pick another.

Emulating products A and B

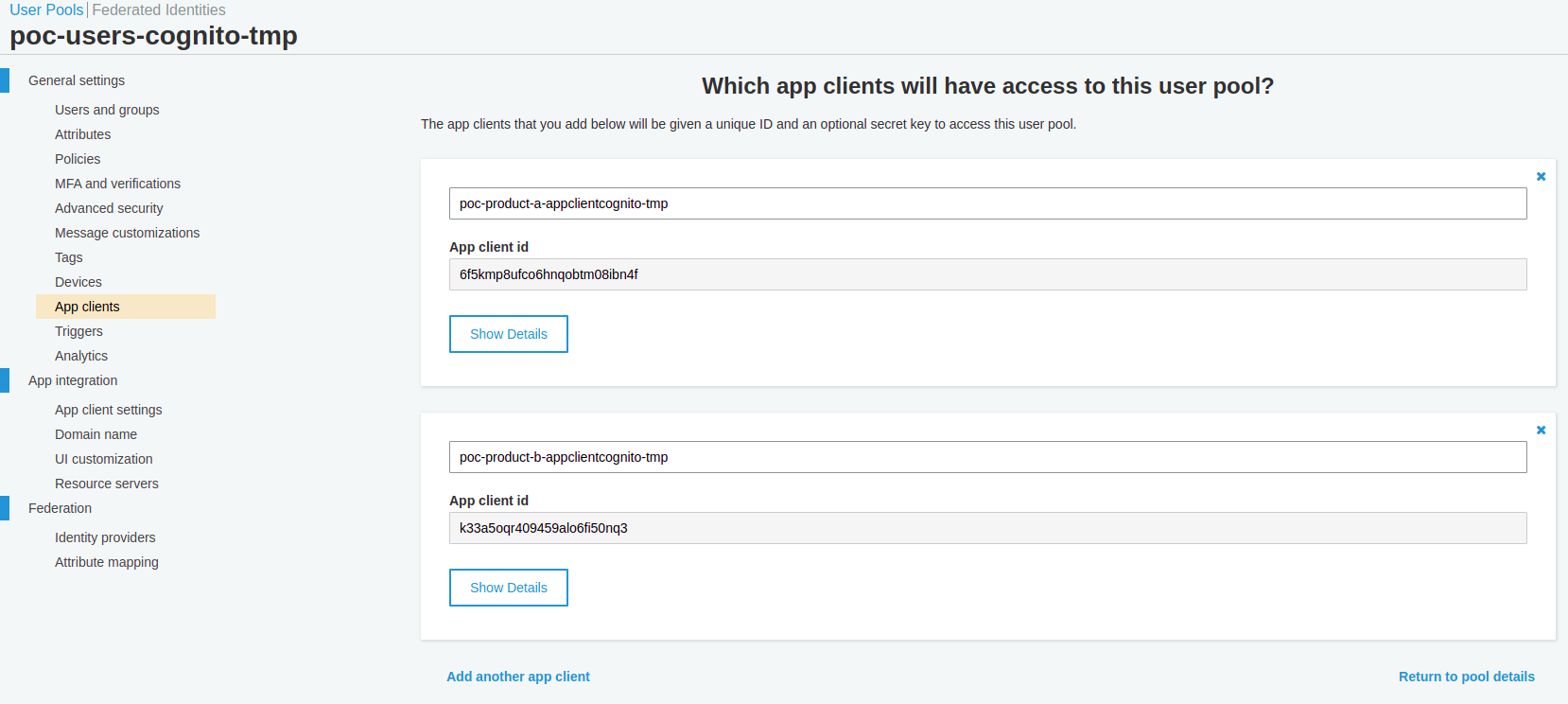

We'll emulate products A and B, but for that, we'll need to identify them on Cognito through App Clients. They were already created by our IaC. So let's look at them through AWS Console:

When an application uses an Identity Provider, it uses through an App Client. The image shows 2 of them for products A and B.

Before running the products, you should execute the command below at the root folder to have each application properly configured with its app client credentials:

Now you can start them up!

▶ docker-compose up -d product-a product-b
Creating network "sso-cognito-authorization-code-grant-type_default" with the default driver
Creating sso-cognito-authorization-code-grant-type_product-b_1 ... done
Creating sso-cognito-authorization-code-grant-type_product-a_1 ... done

"Product A" can be accessed through http://localhost:8000/, and "product B" can be accessed through http://localhost:8001/. A small notice: actually, I would like to use http://localhost:8000/ for product A and http://app-local:8001/ for "product B", but sadly this is not supported by Cognito, which only accepts localhost for testing purposes.

An important thing about the functional testing project

If you look at the project, you'll notice that I configured a reverse proxy to circumvent Cognito limitations about the callback URL I mentioned above. This configuration file basically does the following (remembering that I'm using the hostname each service has inside Docker Compose) for the functional testing service:

  • If you access http://localhost:8000/, you will be proxied with http://product-a:8000/ instead.
  • If you access http://localhost:8001/, you will be proxied with http://product-b:8001/ instead.
# Know more details here:

error_log /tmp/error.log;
pid       /tmp/;

events {
  # No special events for this simple setup

http {
  server {
    listen       8000;
    server_name  localhost;

    location / {
        proxy_pass  http://product-a:8000/;

    # Set a number of log, temp and cache file options that will otherwise default to restricted locations accessible only to root.
    access_log /tmp/nginx_host.access.log;
    client_body_temp_path /tmp/client_body;
    fastcgi_temp_path /tmp/fastcgi_temp;
    proxy_temp_path /tmp/proxy_temp;
    scgi_temp_path /tmp/scgi_temp;
    uwsgi_temp_path /tmp/uwsgi_temp;

    server {
    listen       8001;
    server_name  localhost;

    location / {
        proxy_pass  http://product-b:8001/;

    # Set a number of log, temp and cache file options that will otherwise default to restricted locations accessible only to root.
    access_log /tmp/nginx_host.access.log;
    client_body_temp_path /tmp/client_body;
    fastcgi_temp_path /tmp/fastcgi_temp;
    proxy_temp_path /tmp/proxy_temp;
    scgi_temp_path /tmp/scgi_temp;
    uwsgi_temp_path /tmp/uwsgi_temp;

Also, I had to include a workaround on the back-end side to change the hostname to localhost.

def _apply_gambiarra(uri):
    uri = uri.replace("product-a", "localhost")
    return uri.replace("product-b", "localhost")

Another noteworthy mention is about the screenshot folder. Follow this instruction if you'd like to see the images regarding each step executed by Selenium.

Authorization Code Grant Type on product A

If you look at products A and B, you'll notice they are Django applications, and both are using Django Template Engine. Consequently they are Multi-Page Apps, not SPA ones. As we have a back-end to handle requests, I can use the Authorization Code grant type to retrieve the token, but nowadays, this is perfectly fine using this grant type with PKCE (Proof Key for Code Exchange) on the front-end side with SPA apps. Making this clear, now we can test this flow and see it in action! Run the command below:

▶ docker-compose up functional-testing
Creating sso-cognito-authorization-code-grant-type_functional-testing_1 ... done

You would see something like this if executed through your IDE:

If you enable screenshots, you can open the folder screenshots and see the pictures of each step.

SSO on product B

If you are logged in on "product A", that means you have something that identifies you as logged on in it (a cookie, for example). Still, if you go to product B, you won't be automatically logged in because you are in another domain (in our case, you are in the localhost domain, but I changed how the session cookie is created for each application). Basically, this flow does the same we previously did for "product A", with the addition of the following steps:

  • Go to product B.
  • Click on the Login Auth Code Flow link.
  • Go to the Cognito Hosted UI, and then return to product B as an authenticated user.

It only works because Cognito creates a session cookie on its side when the user authenticates on its UI. So if you had logged off from there, you would have seen the login page on Cognito UI asking for your credentials again instead.

According to Cognito Documentation with regards to Hosted UI session cookies:

For access and ID tokens, don't specify a minimum of less than an hour. Amazon Cognito Hosted UI uses cookies that are valid for an hour; if you enter a minimum of less than an hour, you won't get a lower expiry time.

Supposing that we use the default session cookie, which is 1 hour, the user will experience an SSO if he goes from "product A" to "B" within 1 hour. Otherwise, he'll have to log in again.


The authorization code grant type is relatively easy, but don't underestimate it and other grant types you might face in an actual project, especially with topics that touch them, such as security issues. In addition, there are other points you should have in your mind when doing a project for an organization that obviously will go beyond what we discussed in this post:

The scenario I described in this blog entry is not trivial. Usually, you'll need a good SDK (like Amplify.JS or Firebase) and a simple provider, such as Cognito or GCP Identity Platform, to store your users. Now, if you know that your company will need something more complex, don't hesitate to go with something more powerful and with fewer limitations.

Posted listening to Everlong, Foo Fighters 🎶.

Have you found any mistakes 👀? Feel free to submit a PR editing this blog entry 😄.
